2024 Construction Blog

 More large flatcars

Began working on a pair of General Electric 16 axle depressed flat cars, GEX 800000, and 800002. The two cars are very simular, with the depressed bodies are different.

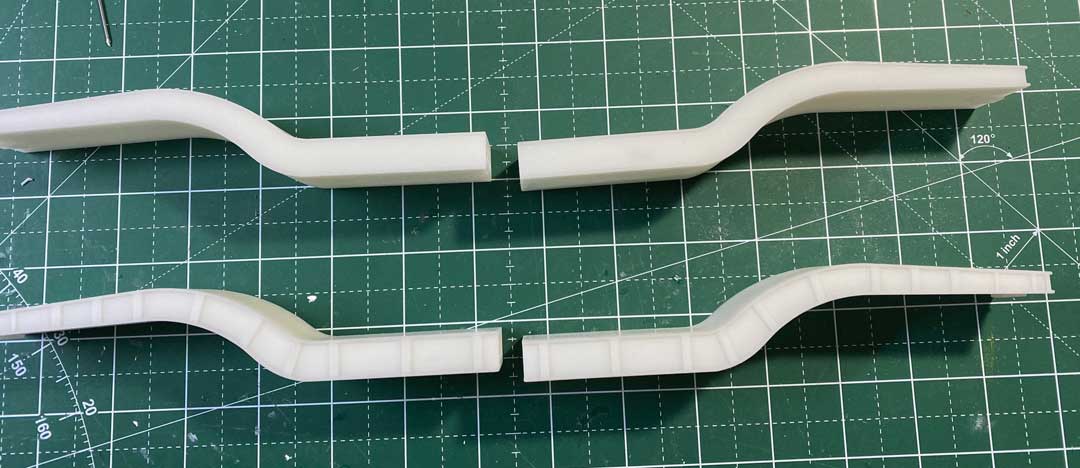

The body was designed in two pieces with holes for two 1/4" threaded rod section for support when glued.

Two piece body

Applying decals

GEX 80000 with the first load

GEX 80002 with the first load


Well cars

Working on four, four axle well cars, Department of Defense, Deleware and Hudson  Penn Central and Southern Pacific.

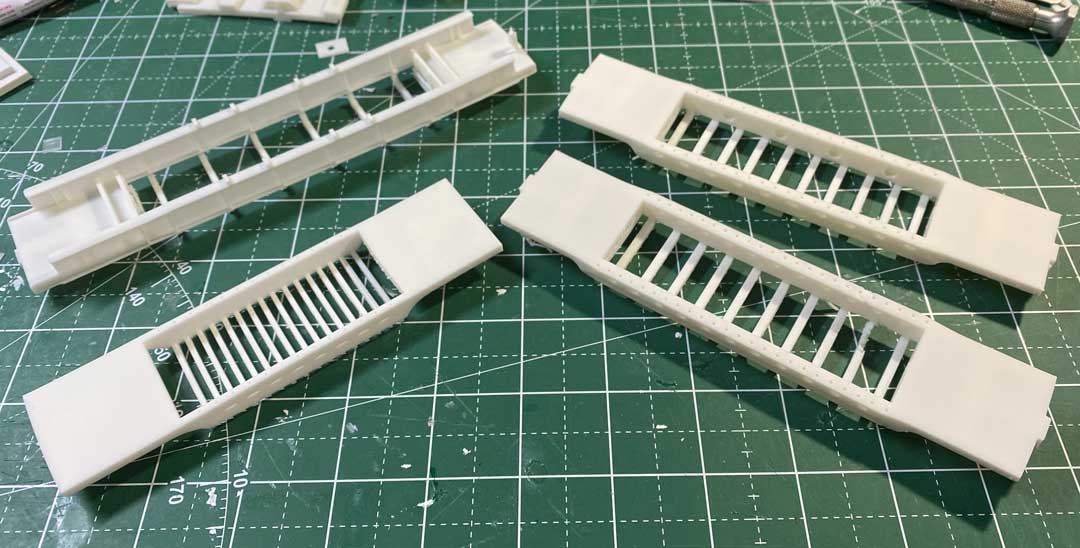

All cars printed

D&H - more work needed

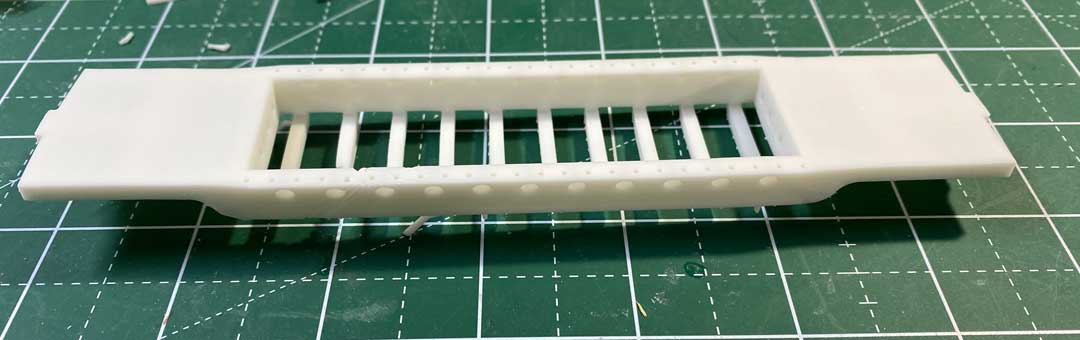

DODX car

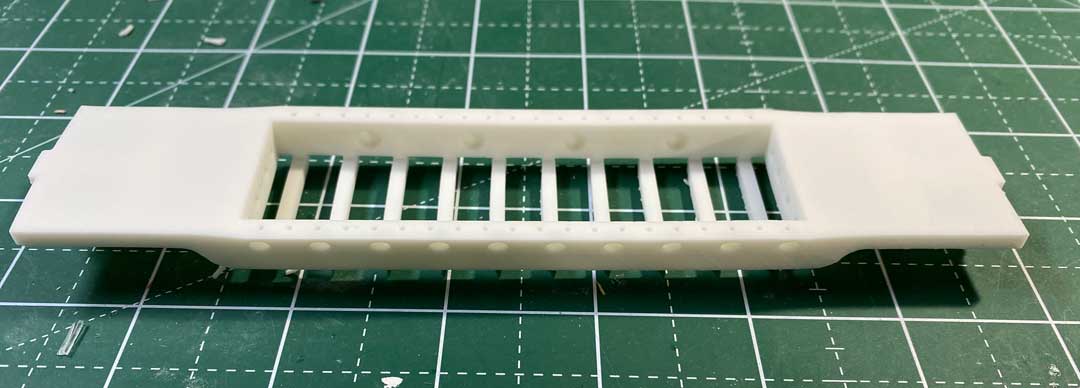

Penn Central

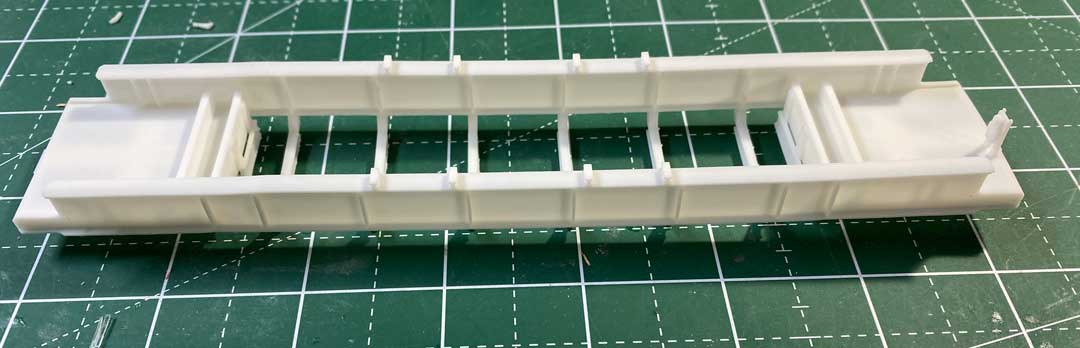

Southern Pacific

Well car loads

The White Train was used to transport nuclear weapons for the Department of Energy. The trains originated at the Pantex plant in Texas, and was made up of two types of cars: guard cars, and safe secure cars. The safe secure cars were basically covered hoppers. There were two different series of the safe secure cars: ATMX 500 and ATMX 600. The original guard cars were rebuilt WWII kitchen cars. Video of an early white train. I first got interested in these cars when I saw the article “ATMX Covered Hoopers” in the August 2001 Mainline modeler by Thorton Waite. Models were made for both of these cars, and have been printed. The ATMX 500 series car is 60' long and fits on a Roundhouse 60' flatcar.

That third photo shows what happens when the models are left way too long in the IPA wash.

ATMX 520

Early print - more work needed

Left in IPA wash too long

First two ready for decals



ready for the first shippment

Generator loads

Created four different generator loads, with the first two being smaller ones. These are shipping on modified Athearn heavy duty flat cars, with the bodies lowered.

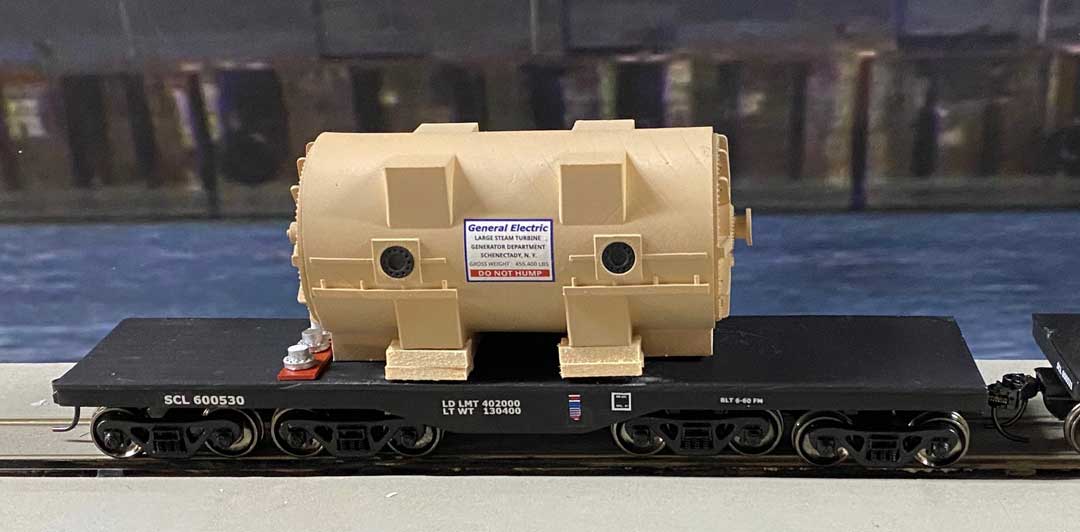

First generator

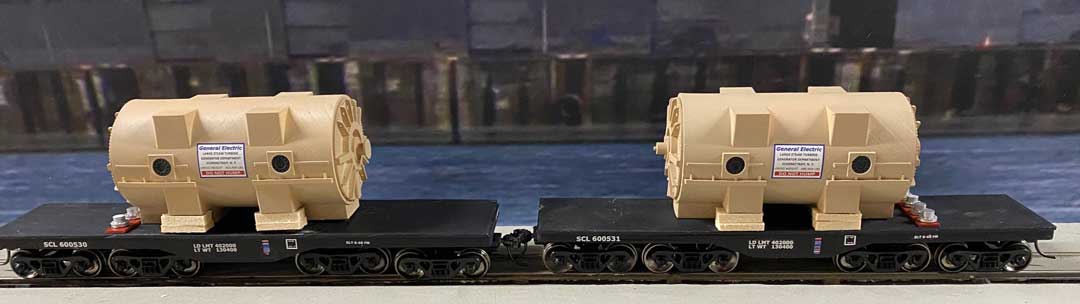

Two loads

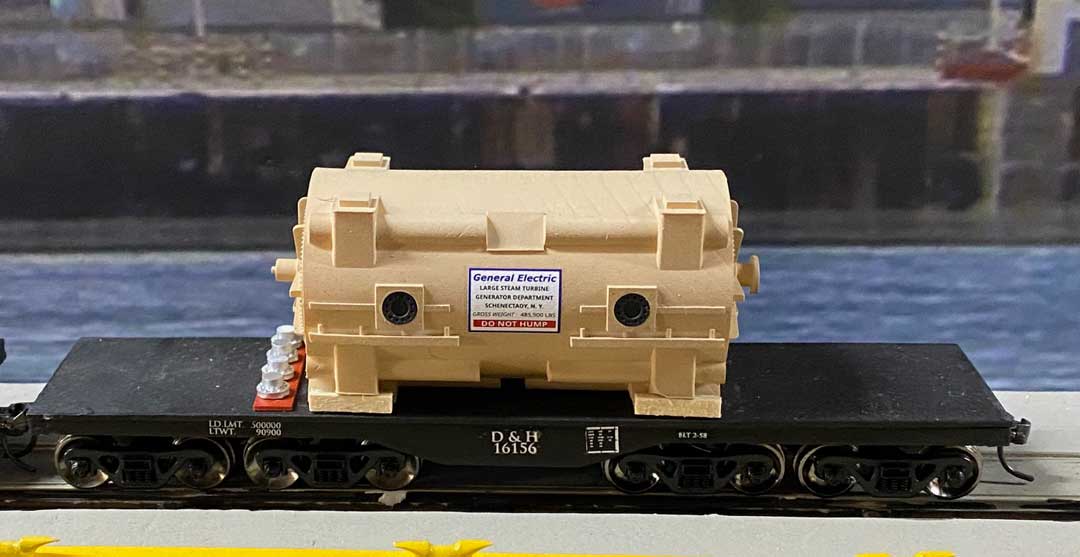

Second generator

Two loads

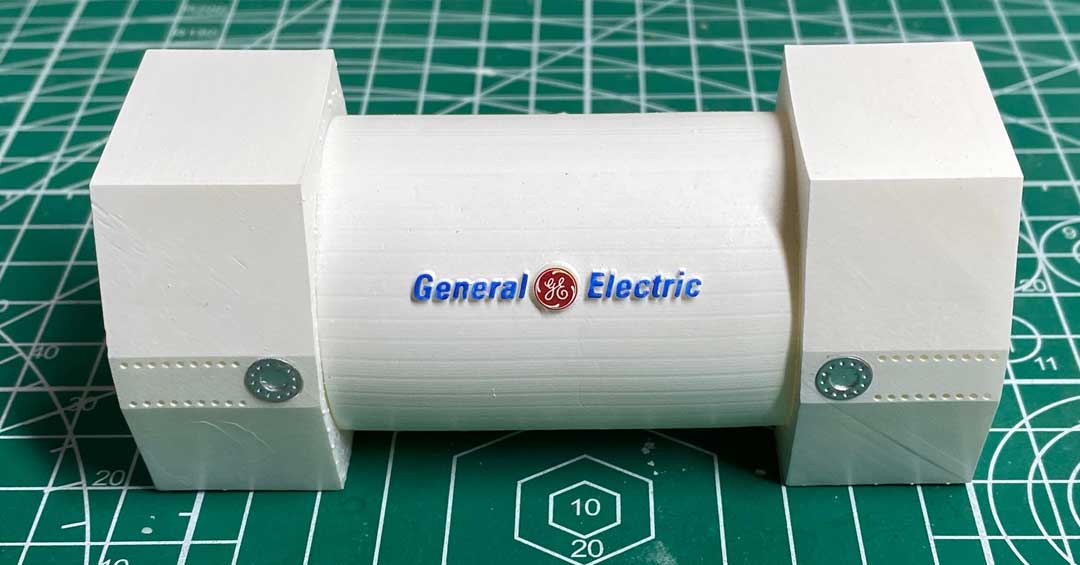

Two lareger generatator loads have also been created, one with square ends, and the other with angled ends.    These will be shipped on the 16 and 20 axle General Electric depreseed flat cars.

Painted and decaled

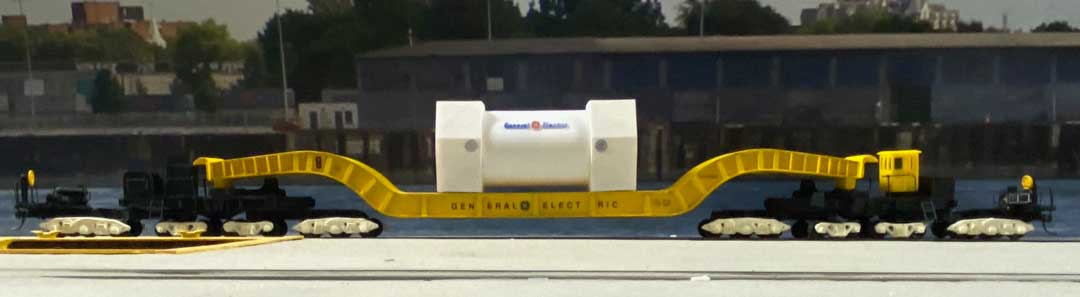

On GEX 800003, ready for shipment

Painted and decaled

On GEX 800003, ready for shipment


Steam reheater header load

Saved two images from EBay years ago of an interesting well car load. Newspaper clipping says this is a steam reheater header for a nuclear power plant. The original design was created in TinkerCAC. As show, the design is simple with shapes added along with "hole" added that removes 3/4 of the donut. But can not get a smooth curved shape with the built in devices.

Original image

Oringal design in TinkerCad

GEX 711 rebuild and load

Went to redo the Concept Engineering resin model of the GEX 711 expandable flat car with a 3D printed cradle. Both the car and the load sat too high. But when trying to remove the cradle from the resin car, I broke the car. So decide to model and print the reset of the car. While doing the modeling took into account the inserts that need to be painted black. These were a pain to paint on the original resin model. Modeled, printed and paint them separately. Those inserts were sides so that they would slip in. Should have made them a little smaller, paint adds more space that what I accounted for.

Original model

car with unpainted load

Sliding in the painted insert

Car with its first load

Other DoD and DOE nuclear loads

Liked the Department of Energy IDOX flat cars with cask loads. This is a NuPac 125-B cask. Believe that these cars and casks were first used to transport some of the damaged fuel assemblies from Three Mile Island nuclear plant. The flat car is made from a cut down Athean Heavy Weight flat car, with end platforms added. Custom decals complete the loads.

Number 5

Fireless loco

Ready for service

Remembered an article in the September 1996 Mainline Modeler, titled DODX Flat Car, by Thorton Waite was the inspiration for this load. This article showed a DODX 8 axle flat car with a 125-B spent nuclear fuel cask car. The flat car is made from a cut down Athean Heavy Weight flat car.

Horizontal cask

Initial printing

Completed - ready for service

Finished the first of three DODX vertical cask well cars. This model was created by Barry Clements, and it is available on his Shapeways shop. It is a very well designed model, with space to add weights in both the body or the cask. Custom decals were created - there are 28 of them on each model!

Completed well car with cask
